Brand High Quality Clock Spring Contact Assy 93490G3130 for Hyundai Kona Kia Morning

The high-quality Clock Spring Contact Assy 93490G3130 produced in Beijing, China is an important component in automobiles. It is mainly used to maintain various wire connections on the steering wheel, such as airbag wires, horn wires, etc., when the steering wheel is turned, ensuring that these functions can still work normally when the steering wheel is turned. This component is installed on the steering column below the steering wheel.

If you are looking for a supplier or purchasing channel for this component, it is recommended that you consult a local automotive parts dealer or online retailer to ensure that you receive high-quality products that meet the requirements of your vehicle model. Meanwhile, ensure to follow the correct operating procedures and safety guidelines when installing or replacing such components.

OEM#93490G3130 93490-G3130: An Original Equipment Manufacturer (OEM) is a supplier that produces a component or system for an automobile manufacturer.An OEM product usually implies that it is of the same quality, specifications, and performance as the component that was originally fitted to the automobile at the time of manufacture.

Product description:

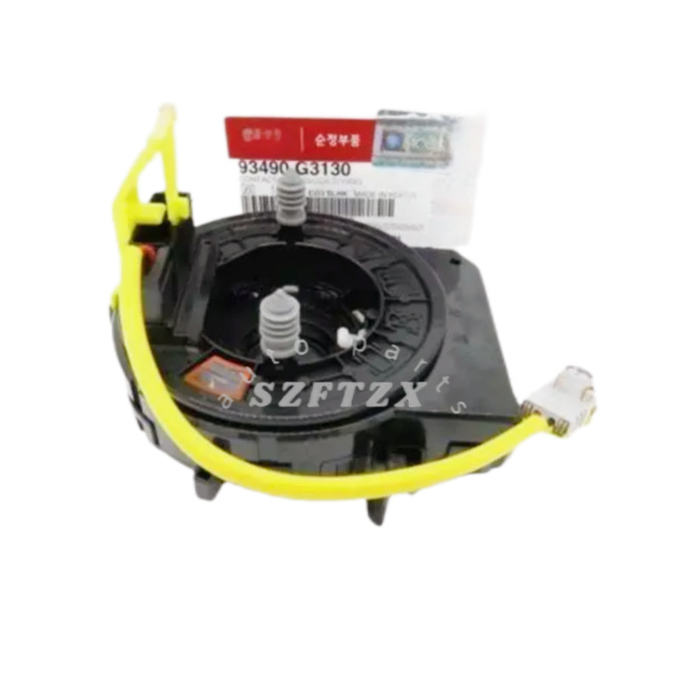

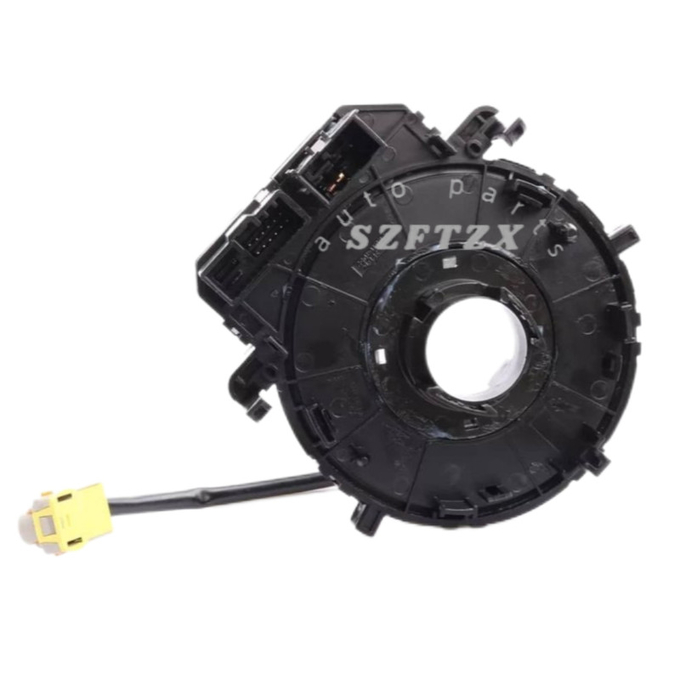

This is a brand new unopened car steering wheel clock spring component produced in Beijing, China OEM # 93490G3130 93490-G3130

The Clock Spring Sensor for KIA Hyundai and more models.

.

Installation precautions:

① Confirm that the front wheels are in a straight state;

② Ensure that the connector on the clock spring rotor is in the 6 o'clock or 12 o'clock position, the neutral pin is locked, the ↓↑ mark is aligned, and a single white flat cable can be seen from the neutral window.

③ The three pins of the clock spring and the combination switch need to be installed and tightened in place. After assembly, they should not be loose or easily come off

④ Fix the clock spring pigtail connector buckle in the buckle hole of the pipe column bracket to ensure it is securely fastened; The clock spring pigtail wire connector is firmly connected to the wire harness connector, and a "click" sound is heard. Pull the connector to check and ensure it is securely inserted

⑤ When assembling the steering wheel, disconnect the neutral pin according to Figure 14 (S6-5828100 (A) is for pulling out the neutral pin), and during the assembly process, the clock spring does not rotate significantly

⑥ After assembling the steering wheel, firmly connect the small wire of the steering wheel to the clock spring connector. If you hear a "click" sound, pull the connector to check and ensure it is securely inserted

⑦ Connect the DAB small wire connector to the DAB and press the yellow locking buckle to lock it in place
