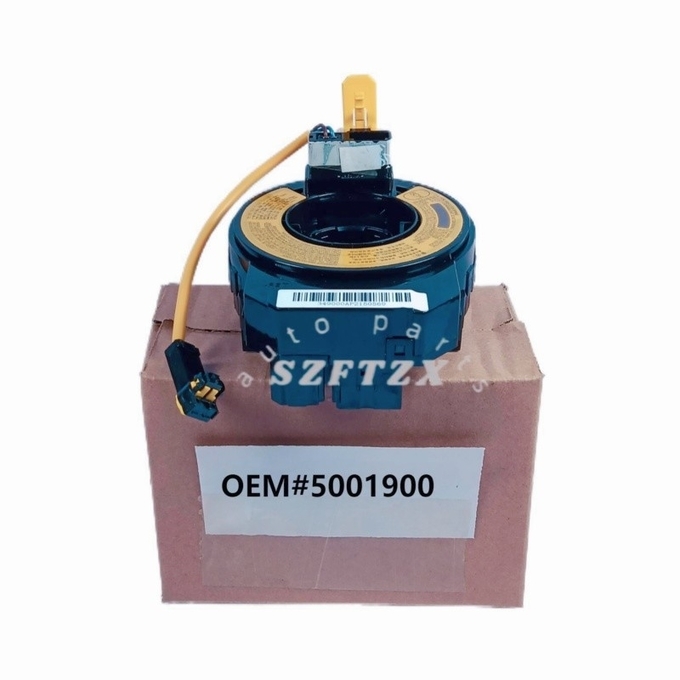

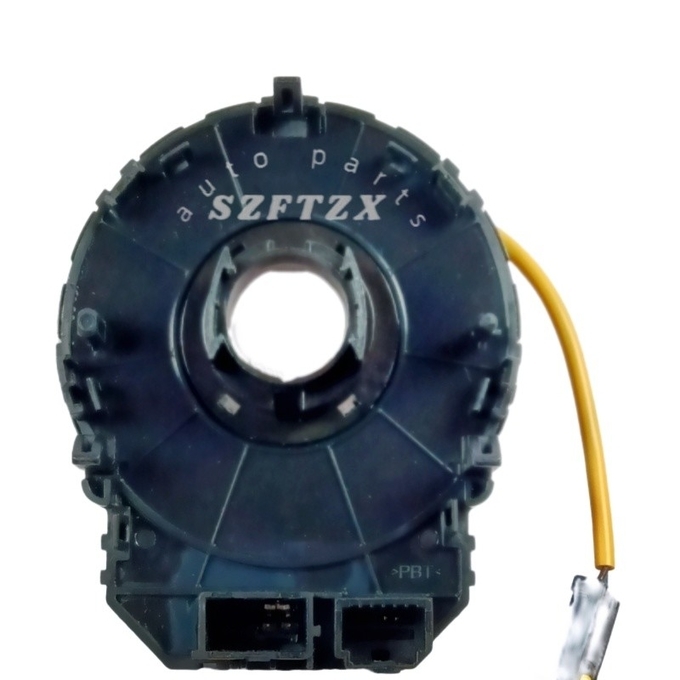

Genuine New Clock Spring 50019000 ASSY-Clock Spring for Roewe 350 Morris Garages 3

Product Name: Genuine New Clock Spring 50019000 ASSY-Clock Spring for Roewe 350 Morris Garages 3
Model: Roewe 350 and may include Morris Garages 3.
Genuine Quality: This clock spring is a genuine Roewe 350 part, with the same quality standards and compatibility as the original.
High Reliability: The original parts undergo strict quality control to ensure stability and reliability during vehicle use and reduce failure rate.
Caution.
When replacing the clock spring, it is recommended that it be done by a professional mechanic to ensure that it is installed correctly and meets safety standards.
Regularly check and maintain the steering wheel and airbag system of the car to ensure the safety of vehicle traveling.

Applicable vehicle models:

Installation precautions:

① Confirm that the front wheels are in a straight state;

② Ensure that the connector on the clock spring rotor is in the 6 o'clock or 12 o'clock position, the neutral pin is locked, the ↓↑ mark is aligned, and a single white flat cable can be seen from the neutral window.

③ The three pins of the clock spring and the combination switch need to be installed and tightened in place. After assembly, they should not be loose or easily come off

④ Fix the clock spring pigtail connector buckle in the buckle hole of the pipe column bracket to ensure it is securely fastened; The clock spring pigtail wire connector is firmly connected to the wire harness connector, and a "click" sound is heard. Pull the connector to check and ensure it is securely inserted

⑤ When assembling the steering wheel, disconnect the neutral pin according to Figure 14 (S6-5828100 (A) is for pulling out the neutral pin), and during the assembly process, the clock spring does not rotate significantly

⑥ After assembling the steering wheel, firmly connect the small wire of the steering wheel to the clock spring connector. If you hear a "click" sound, pull the connector to check and ensure it is securely inserted

⑦ Connect the DAB small wire connector to the DAB and press the yellow locking buckle to lock it in place
