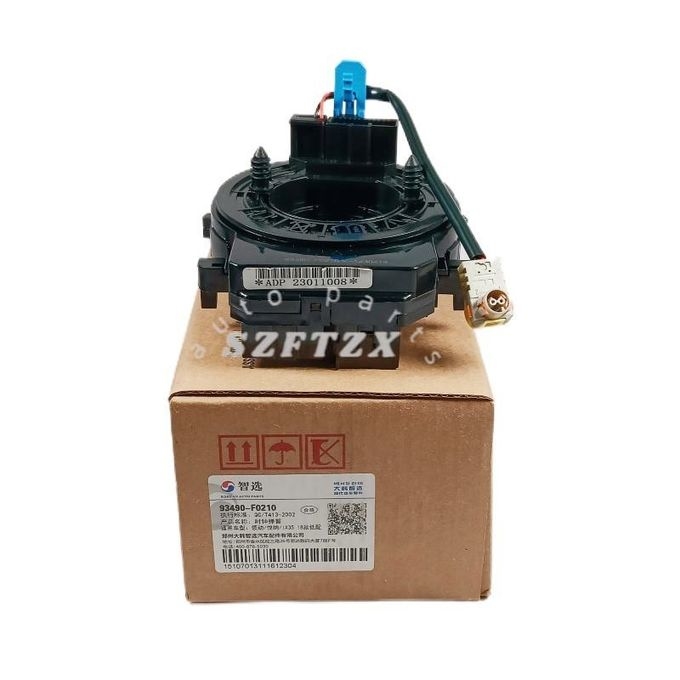

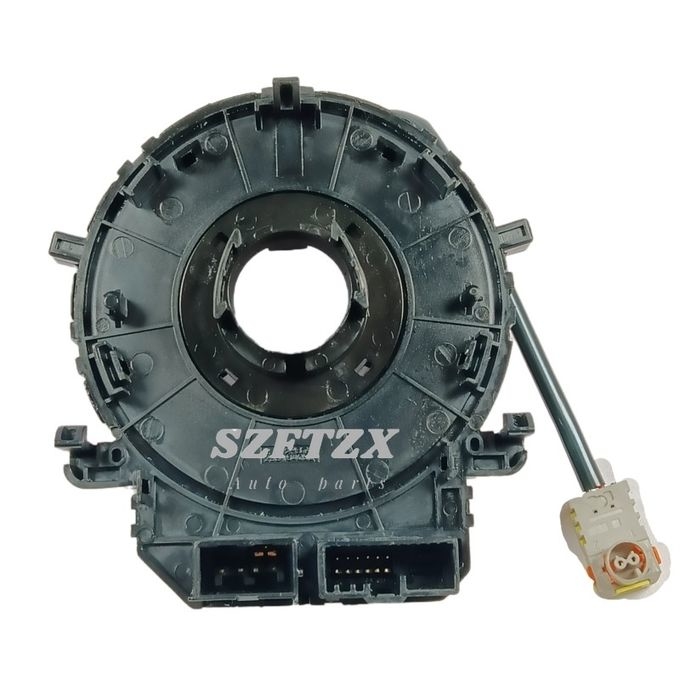

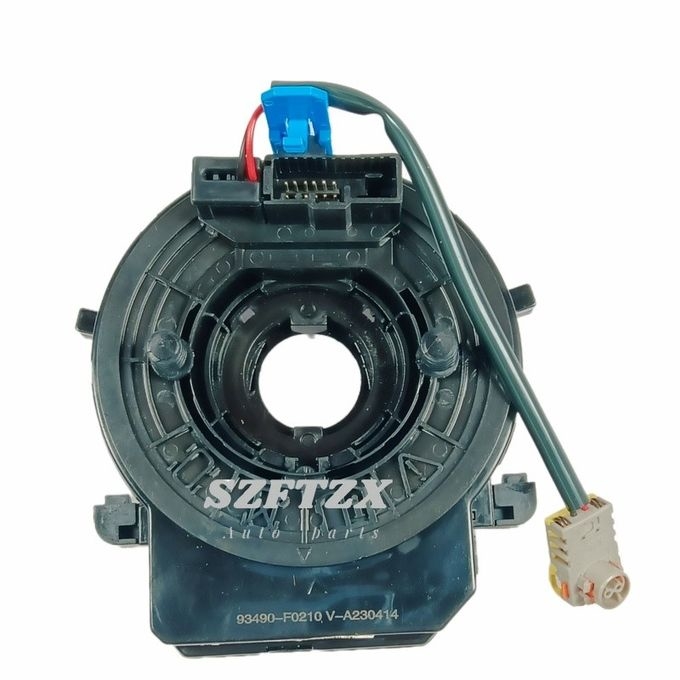

0.4KG Auto Clock Spring Contact Assy 93490F0210 Hyundai Elantra Clock Spring Ix35 Ix25 2017-2021
Wholesale High Quality Clock Spring Contact Assy 93490F0210 for Hyundai Elantra ix35 ix25 2017-2021
Product parameter:
The part number "93490F0210" or "93490-F0210" corresponds to an OEM (Original Equipment Manufacturer) Steering Wheel Clock Spring, also known as a clock spring sensor. This component is an integral part of the vehicle's airbag system and is responsible for maintaining electrical connections to the steering wheel controls, such as the airbag deployment circuit, horn, and other functions, as the steering wheel is turned.
The clock spring ensures that these connections remain uninterrupted, allowing the steering wheel controls to function properly at all times.
Product description:
This is Auto Steering Wheel Clock Spring OEM#93490F0210 93490-F0210 Brand New Unopened
Clock Spring Sensor for 2017-2021 Hyundai Sonata ix25 ix35 and more models.
| Trade Name | Clock Spring |
| OEM Number | 93490F0210 93490-F0210 |
| Applicable models | 2017-2019 Hyundai Elantra 2018-2021 Hyundai ix35 KX3 2020 Hyundai ix25 |
Installation precautions:
① Confirm that the front wheels are in a straight state;
② Ensure that the connector on the clock spring rotor is in the 6 o'clock or 12 o'clock position, the neutral pin is locked, the ↓↑ mark is aligned, and a single white flat cable can be seen from the neutral window.
③ The three pins of the clock spring and the combination switch need to be installed and tightened in place. After assembly, they should not be loose or easily come off
④ Fix the clock spring pigtail connector buckle in the buckle hole of the pipe column bracket to ensure it is securely fastened; The clock spring pigtail wire connector is firmly connected to the wire harness connector, and a "click" sound is heard. Pull the connector to check and ensure it is securely inserted
⑤ When assembling the steering wheel, disconnect the neutral pin according to Figure 14 (S6-5828100 (A) is for pulling out the neutral pin), and during the assembly process, the clock spring does not rotate significantly
⑥ After assembling the steering wheel, firmly connect the small wire of the steering wheel to the clock spring connector. If you hear a "click" sound, pull the connector to check and ensure it is securely inserted
⑦ Connect the DAB small wire connector to the DAB and press the yellow locking buckle to lock it in place
